¿Quién puede proporcionar soluciones de exactitud y alto rendimiento sobre un robot tan pequeño?
La tecnología del Neón cruza fronteras, con posibilidad de incorporar hasta 8 canales de pipeteo, que combinan tanto las acciones de aspiración y dispendión de líquidos como las de transporte de placas dentro del propio equipo.
Plataforma
Todos los modelos
Ordenador & Programación
Software, Sistema operativo
Software Lirix, Windows™ XP, Servicio del pack 2 o superior
Software
Ordenador
  • Embedded in pipetting deck, data acces s via US B 2.0 por t in support stand Embedded in pipetting deck, data acces s via US B 2.0 por t in support stand
  • Technical data: CeleronM 1 . 5 GHz, 512 MB RAM, >4 0 GB HD
  • Communication: 2 serial por ts R S -232 , 4 US B 2.0 ports , 1 parallel por t, LAN (R J -4 5 )
Communication
  • High speed CAN bus ; max speed of 1MB it/ s ec; 2 -6 CAN ports in supports tands
Robotic Performance
Position Accuracy
in X/ Y/ Z: +/ - 0.2 mm (+/ - 0.08 ")
Plate Handler "Plate-GripX"
Lifts objects up to 400 g (0 . 9 lbs )
Pipetting Performance
Tip Types
Disposable tips with and without filte s ; channels with independent Y and Z movement
Pump Sizes
Medium pumps : 250 μl      Large pumps : 1000 μl
Volume Ranges
Medium tips : 2-250 μl     Large tips : 10 -1000 μl
Precision and Accuracy
   Pump Size      Volume dispensed      Precision (CV%)       Inaccuracy (%)
water dispensed
     250 μl             20 μl                1.0 %                2.5 %
tips from air under optimal
                       200 μl                0.5 %                1.0 %
conditions in single pipetting
   1’000 μl            100 μl                1.0 %                3.0 %
                     1’000 μl                0.5 %                1.0 %
Liquid Detection with Pressure
  • Single or multiple detection, independent for each channel
Sensor
  • Liquid level detection and clot detection
Pipetting Techniques
Container Format
Lirix suppor ts all liquid container formats up to 3 8 4 -well plates
Pipetting Skills
  • Single pipetting, multi pipetting, replication, aliquoting, ar chiving
  • Serial dilutions , pre-dilutions , reformatting
  • Liquid mixing in source and destination container
Optional Devices
Plate Handler "Plate-GripX"
Gripper finger s are manipulated with two tip adapters
Bar code Scanner
Most common bar code types for tubes or plates
Plate Shaker "Plate-ShakeX"
Linear and orbital s haking mode with speed range 1 0 0 -2 ’0 0 0 rpm and an amplitude of 2 mm
Heating / Cooling Devices
Temperature control devices for microplates , tubes and cus tomis ed racks and containers .
SPE Vacuum Station
Vacuum-based s olid phase extraction device for NA and protein isolation.
Magnetic Bead Station
Magnetic bead separation for NA and protein isolation.
Power Supply Input
Voltage, Frequency
Embedded in pipetting deck; 1 1 0 / 2 4 0 VAC; 5 0 / 6 0 Hz
Regulatory
Standards
CE compliant
Environmental Conditions
Temperature
Operating: 1 5 -3 2 °C (5 9 -9 0 °F); S torage: 1 0 -5 0 °C (5 0 -1 2 2 °F)
Relative Humidity
Operating and s torage: 3 0 -8 0 % rH (non-condens ing) at 3 0 °C (8 6 °F)

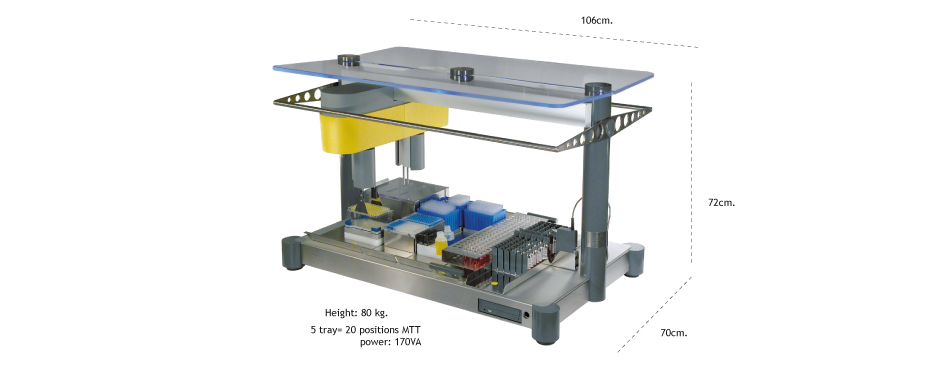

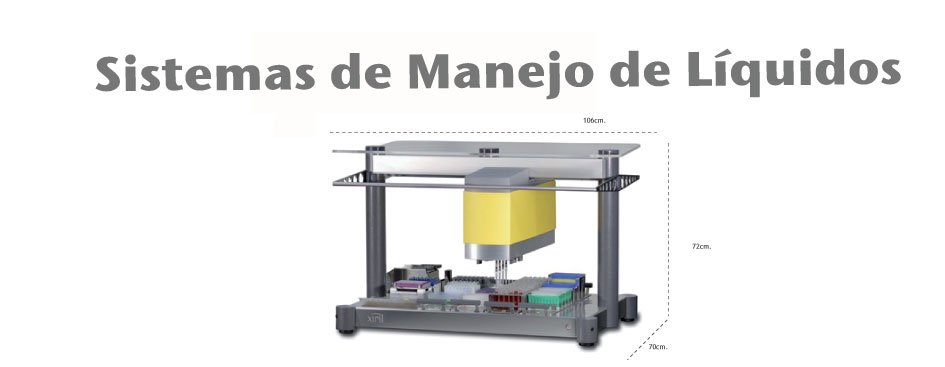

Xiril 100 - The compact and flexible liquid handling robotic workstation with a full range of accessories to perfectly serve applications within the Life Science and Diagnostic markets. A step up from the 75cm platform, our popular Xiril 100 with up to four pipettes and 20 microplate positions perfectly serves low to medium throughput needs
